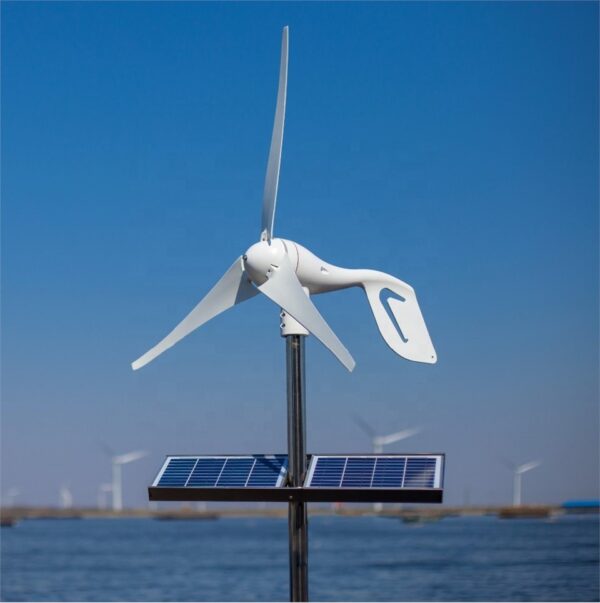

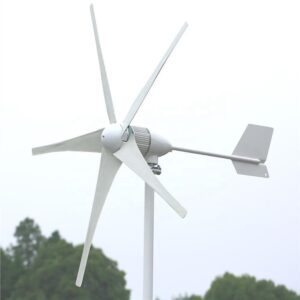

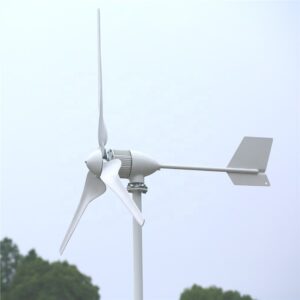

Wind Turbine Generator RX-400H3-5 AC 400 watts 3 or 5 blade

400W AC Wind Turbine Generator

Introduction

1.Low start up speed; high wind energy utilization; beautiful appearance; low vibration

2.Human friendly design, easy installation, maintenance and repair.

3.Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

4.The generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability

Technical Data

Model	RX-400H3
Rated power	400W
Maximum power	410W
Nominal voltage	12/24V
Start-up wind speed	2.0m/s
Rated wind speed	11m/s
Survival wind speed	50m/s
Weight	9.5kg
Wind wheel diameter	1.3m
Blades quantity	3/5
Blade material	Nylon fiber
Generator	Permanent magnet synchronous generator with three-phase alternating current
Controller system	Electromagnetic/yaw
Regulating way	Automatic adjustment of wind angle
Working temperature	-40°C~80°C
Drawing
Diagram


Application
