UZ Energy Butterfly 20kwh LV battery storage CATL cells high capacity

Premium craftsmanship  Designed by renound industrial design house in Copenhagen, Valeur.

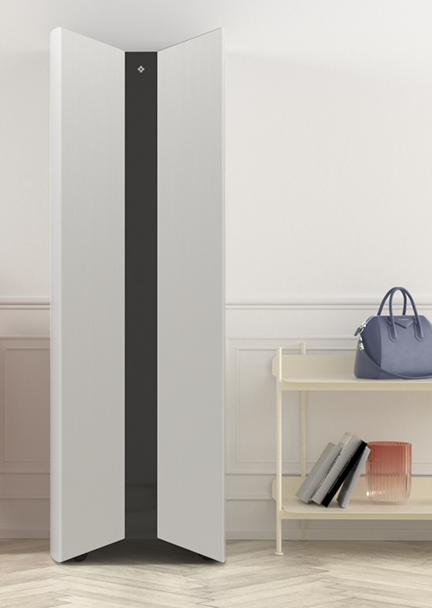

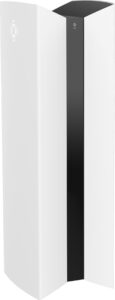

The UZ Butterfly is designed and built in a class of its own from beautifully crafted glass and coated steel. Paired with its clean lines and elevated base, the Butterfly is a design object that doesn’t need to be hidden away.  Powered by 4 CATL powered top quality Power Lite 051100-A.

Battery Pack (4 sets) Power Lite 051100-A
Battery Type LiFePO4
Nominal Energy 20 kWh
Nominal Power 10 kW
Nominal Capacity 100 Ah
Nominal Voltage 51.2 V
Working Voltage Range 48 – 57.6 V
Nominal Current 50 A (0.5 C)
Max Continuous Dischargin Current 100 A (1 C)
Net Weight 235 kg
Dimensions W × D × H 440 × 600 × 1450 mm
Working temperature range 0 – 50 °C
Designed Life-span 6000 Cycles1
Protection Level IP20
Communication CAN/RS485/RS232/Dry Contact
Certificate (Battery Pack) TUV/IEC 62619/CE-IEC 61000
IEC 62040/UN38.3
Calendar Life 10 Years

Working Condition 0.5 C @ 25 deg. C, 80% DoD,
1 cycle per day
