Suntech Solar Panel 450W Mono PERC – Silver Frame, 9BB 144 Half Cell

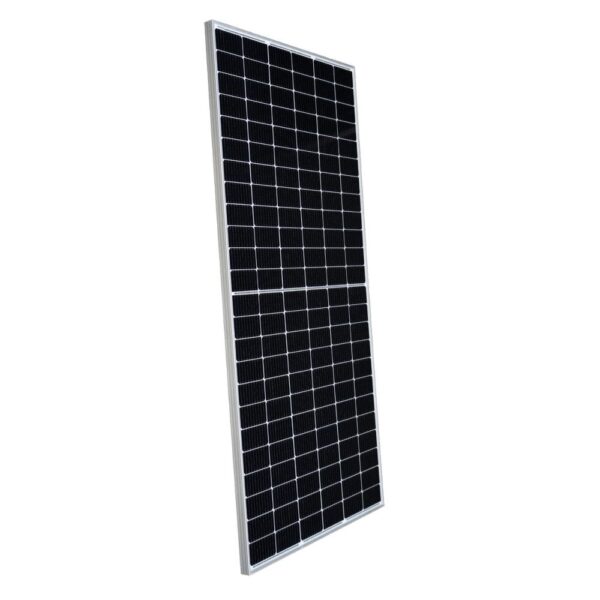

Suntech 450W Mono PERC – Silver Frame

This is a 9BB Half Cut 144 cells PV solar panel. Tempered glass with an anodised aluminum alloy frame and white backsheet. The half-cell technology enables the module to give a higher power output whilst reducing the system cost. Half-cell technology also helps to alleviate hot spot risks, which can be found in high power modules.

KEY FEATURES:

• High power output Compared to 158.75 mm module, the power output can increase 25W-30W
• Excellent weak light performance – More power output in weak light condition, such as haze, cloudy, and morning
• High PID resistant – Advanced cell technology and qualified materials lead to high resistance to PID
• Lower operating temperature – Lower operating temperature and temperature coefficient increases the power output
• Withstanding harsh environment – Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline
• Extended load tests – Module certified to withstand front side maximum static test load (5400 Pascal) and rear side maximum static test loads (3800 Pascal)
• IP68 rated junction box
• Standard 12 year product warranty; 25 year performance warranty

• Brand	Suntech
  Power Class	450 W
  Watts/ m²	207
  Cells	144 Half Cells (6X24 half cells)
  Frame Colour	Silver
  Backsheet	White
  Module Efficiency (%)	20.7
  Connector Type	MC4 Compatible
  Length (mm)	2,095
  Width (mm)	1,039
  Thickness (mm)	35
  Product Weight (Kg)	24.5
  MCS No	MCS BBA 0198
  Warranty Period	12 Years
  Performance Warranty	25 Years
