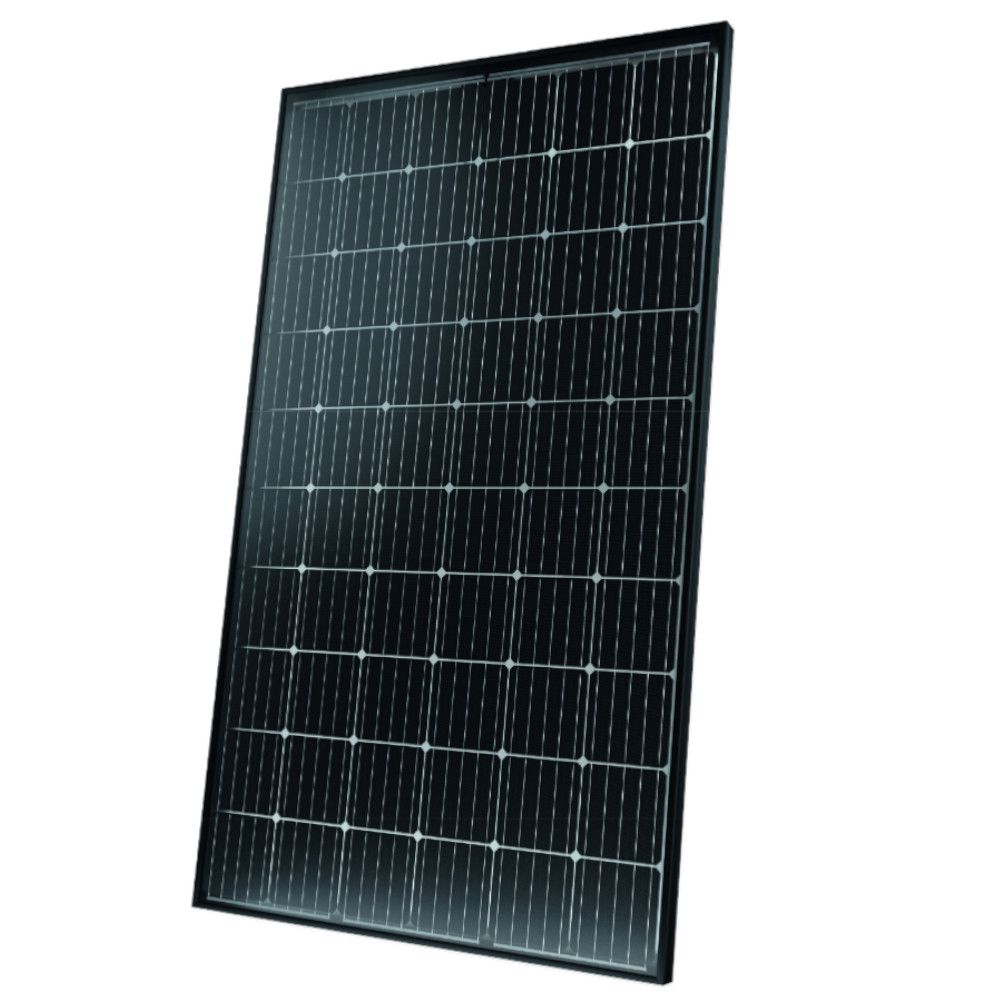

SolarWatt Vision 315w 60m Style Solar Panel Mono Perc Panel Glass Glass Heavy Duty All Black

SolarWatt 315W Glass-Glass Mono PERC Vision 60M style Black Frame

SOLARWATT glass-glass modules deliver the highest long-term yields. They are visually appealing, robust and resilient, yet just as light as their glass-foil predecessors.

The  high-performance  PERC   solar  cells  are   embedded  almost  indestructibly  in  the   glass-glass  composite  and   thus  optimally  protected   against all weather effects and mechanical stress. With the monocrystalline module series you also get a 30 year product and performance guarantee.

FEATURES:

• Lightweight 2mm thick glass panes on front and back
• 100% protection against PID (potential-induced degradation)
• Extreme environmental protection: ammonia (farms), aggressive gasses and acid rain (industrial), salt (coastal areas), & abrasion (sandstorms)
• Maximum fire resistance
• snow-load warranty
• IP67 socket for optimum watertightness
• 30-year warranty on the product and 30-year linear performance guarantee
• Glass-glass module
• Eye catcher with highest yields Thanks to their modern design SOLARWATT glass-glass modules deliver the highest long-term yields. They are robust and resilient, yet justas light as their glass-foil predecessors.
• The high-performance PERC solar cells are embedded almost indestructibly in the glass-glass composite and thus optimally protected
  against all weather eff ects and mechanical stress. SOLARWATT can therefore off er a 30-year warranty on performance and product quality.
• The SOLARWATT FullCoverage insurance is included for 5 years and
  free of charge. It insures almost all risks and takes eff ect even if the
  modules do not produce electricity or deliver less than expected in
  the event of damage.

• Brand	SolarWatt
  Power Class	315 W
  Cells	60 (6×10)
  Frame Colour	Black
  Backsheet	Glass
  Module Efficiency (%)	19.1
  Connector Type	MC4 Original
  Length (mm)	1,680
  Width (mm)	990
  Thickness (mm)	40
  Product Weight (Kg)	22.8
  MCS No	MCS BBA 0054
  Warranty Period	30 Years
  Performance Warranty	30 Years

  Module technology Glass-glass laminate; aluminum frame, black
  Covering material
  Encapsulation
  Backing material
  Tempered solar glass with anti-refl ective fi nish, 2 mm
  EVA-solar cells-EVA, transparent
  Tempered glass, 2 mm
  Transparent areas appr. 9,8 %
  Solar cells 60 monocrystalline high power PERC solar cells
  Cell dimensions 157 x 157 mm
  L x W x H / Weight 1,680± 2 x 990± 2 x 40± 0,3 mm / appr. 22,8 kg
  Connection
  technology
  Cables 2 x 1,0 m/4 mm²
  Stäubli Electrical MC4-connectors
  Bypass diodes 3
  Max. system voltage 1,000 V
  IP rating IP67
  Protection class II (acc. to IEC 61140)
  Fire class C (acc. to IEC 61730), E (acc. to EN 13501)
  Certifi ed mechanical
  ratings as per
  IEC 61215
  Suction load up to 2,400 Pa (test load 3,600 Pa)
  Pressure load up to 5,400 Pa (test load 8,100 Pa)
  Recommended stress
  load as per Installation Instructions
  Please refer to the specifi cations in the Installation Instructions and Warranty Conditions.
  Qualifi cations IEC 61215 | IEC 61730 | IEC 61701 | IEC 62804
  Non-glare option*: Reflection characteristics at low irradiation angles and
  full sunlight (according to BRDF): Lv10°=19.000 cd/m²
  (*Available on request for locations with high demands on non-glare, prices differ)
