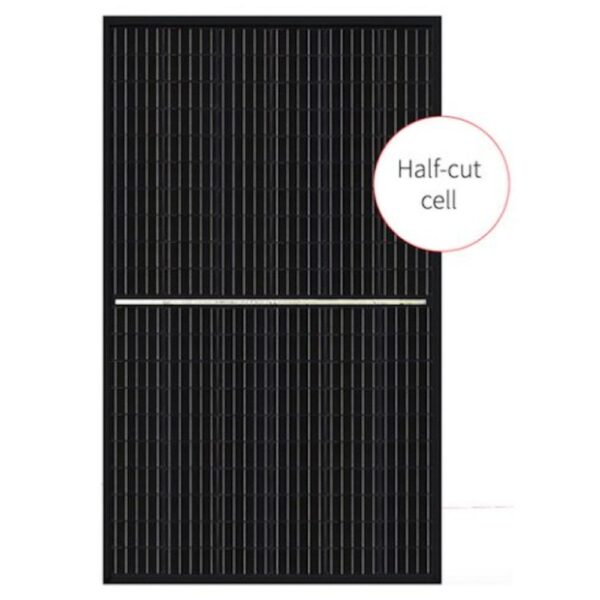

Sharp Solar Panel 320W Mono PERC NU-JC series All Black NU-JC320B

SHARP – 60 Years in PV

The new half-cut cell PERC modules offer a 2-3% higher module performance compared to standard full cell panels, providing customers with an efficient and reliable solution for every application, from residential projects up to large-scale commercial installations and free-field power plants.

The 120 monocrystalline half-cell panels NU-JC320B are suitable for industrial and residential roof installations.

KEY FEATURES:

• PERC monocrystalline silicon photovoltaic modules
• Improved reliability
• 5 busbar technology
• Guaranteed positive power tolerance (0/+5%)
• Max system voltage 1,000V
• High module efficiency 19.0%
• Improved shading performance
• Reduced hot spot risk
• Robust product design (tests passed: PID resistance Salt mist IEC61701, Ammonia IEC62716, Sand and Dust IEC60068)
• Proven quality (VDE IEC/EN 61215 + IEC/EN61730, Safety Class II, CE, Fire Rating Class C)
• NEW 15 years product warranty, 25 years linear power output warranty

• Brand	Sharp
  Power Class	320 W
  Cells	120 Half Cells (6×20 half cells)
  Frame Colour	Black
  Backsheet	Black
  Module Efficiency (%)	19
  Connector Type	MC4 Compatible
  Length (mm)	1,684
  Width (mm)	1,002
  Thickness (mm)	35
  Product Weight (Kg)	19.5
  MCS No	BABT8775-001
  Warranty Period	15 Years
  Performance Warranty	25 Years
