Schneider Electric | 865-1014-01 Conext XW+ Power Distribution Panel | Pre-Wired, |1-Pole 250A 160VDC Breaker | No AC Breakers | RNW865101401 | FREE UK POST

Schneider Electric | 865-1014-01 Conext XW+ Power Distribution Panel, Pre-Wired, 1-Pole 250A 160VDC Breaker, No AC Breakers, RNW865101401

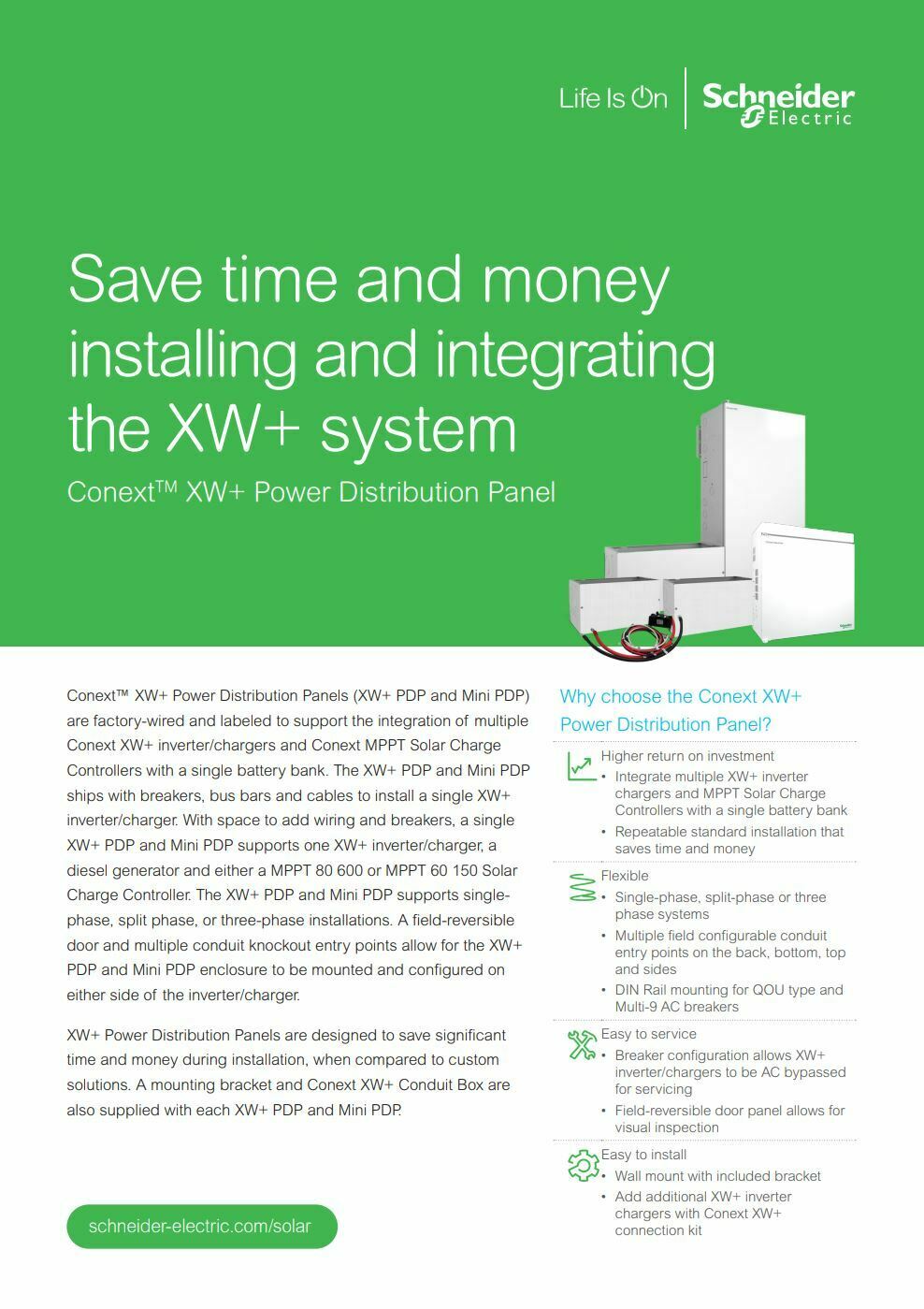

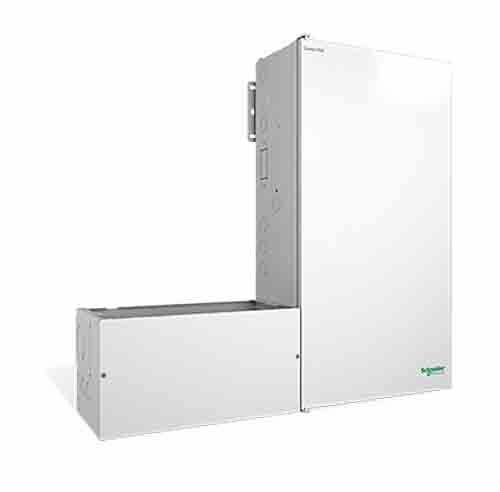

The Conext™ XW+ Power Distribution Panel (PDP) is pre-wired at the factory and labeled to support the integration of multiple Conext™ XW+ Inverter/Chargers and Conext MPPT Solar Charge Controllers with a single battery bank. There is space to add wiring and breakers to support up to three XW+ inverter/chargers, a diesel generator and either (4) MPPT 80-600 or (4) MPPT 60-150 Solar Charge Controllers. The XW+ PDP supports single-phase split phase or three-phase installations. It also comes with multiple conduit knockout entry points allow for the XW+ PDP enclosure to be mounted and confiured on either side of the inverter/charger. The XW+ Power Distribution Panel is designed to save signifiant time and money during installation, when compared to custom solutions.

Includes

• Field Reversible Panel Door
• Wall Mounting Bracket
• XW+ Conduit Box
• (5) AC Breaker Expansion Postions
• (1) GJ 250A, 160VDC, 3/8″ Stud DC Breaker Installed, plus (2) Expansion Positions
• (1) Ground Terminal Bus Bar, (1) Neutral Terminal Bus Bar, (1) Negative Terminal Bus Bar
• (1) Pair #4/0 AWG Arctic Ultraflex Blue™ Battery Cables (Factory-Installed and Ready to Connect)
• (8) Expansion Positions for Charge Controller DC Breakers
• #6 AWG Arctic Ultraflex Blue™ AC Wiring (Factory-Installed and Ready to Connect) (1) Inverter to the AC Breakers

NOTE: AC Breakers are Not Included

Features

Higher Return on Investment

– Integrate multiple XW+ inverter chargers and MPPT Solar Charge Controllers with a single battery bank
– Repeatable standard installation that saves time and money

Flexible

– Single-phase split-phase or three phase systems
– Configure to the left or right side of the XW+ inverter/chargers
– Multiple field configurable conduit entry points on the back, bottom, top and sides
– DIN Rail mounting for QOU type and Multi-9 AC breakers

Easy to Service
– Breaker configuration allows XW+ inverter/chargers to be AC bypassed for servicing
– Field-reversible door panel allows for visual inspection

Additional Optional Accessories (Sold Separately)  We are the UK Distributor | Free UK Post

• 1420-006 – Conext XW+5548 NA Inverter/Charger
• 1420-007 – Conext XW+6848 NA Inverter/Charger
• 1740-005 – Conext Automatic Generator Start (AGS)
• 1610-076 – XW+ Connection Kit for Second Inverter
• 1930-117 – XW+ Breaker Kit for Second Inverter
• 2110-026 – XW+ System Control Panel
• 1700-016 – XW-MPPT60-150 Charge Controller
• 1700-026 – XW-MPPT80-600 Charge Controller
• 2100-043 – Conext ComBox
• 2120-031 – Conext Battery Monitor
